ShropMog Replace a 4/4 Two-Seater Chassis - Part 2 The Rebuild

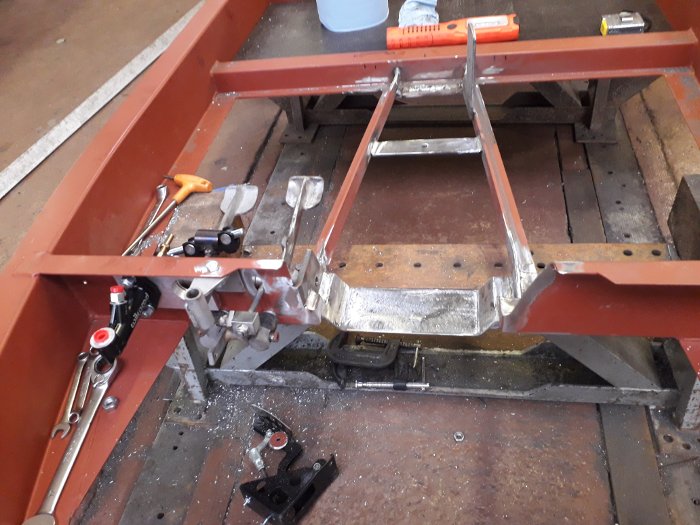

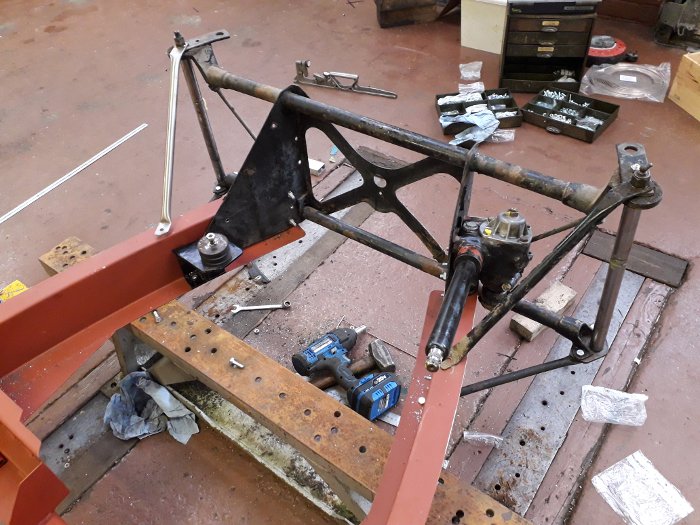

The front cross member needed to be lowered to accommodate the gearbox. Plates were added for the gearbox mounting and handbrake. Dual brake master cylinders are fitted and a balance bar on the pedal.	The cross frame, steering box, engine mounting and brake reaction bars are all located into position.

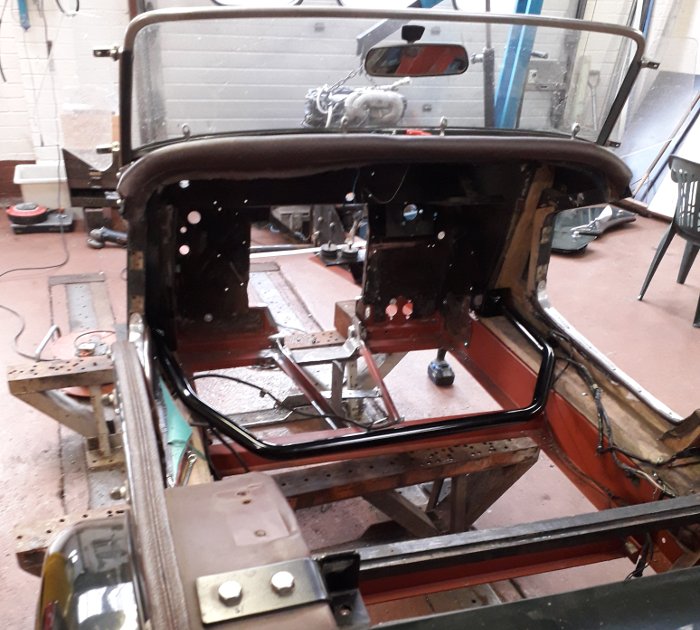

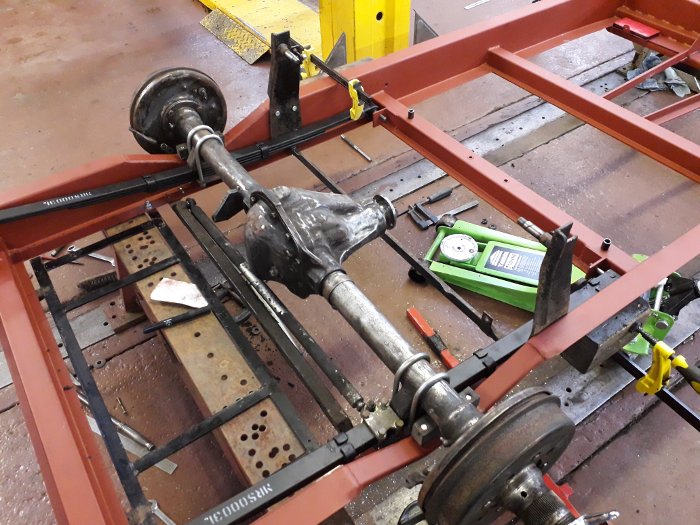

New leaf springs, posts for the shock absorber top mounting, panhard rod and fuel tank carrier are bolted into place. The rear axle is located with a new set of uprated U-bolts.	Body tub refitted, scuttle roll baris ready to fit. You can just make out the engine on the hoist, beyond.

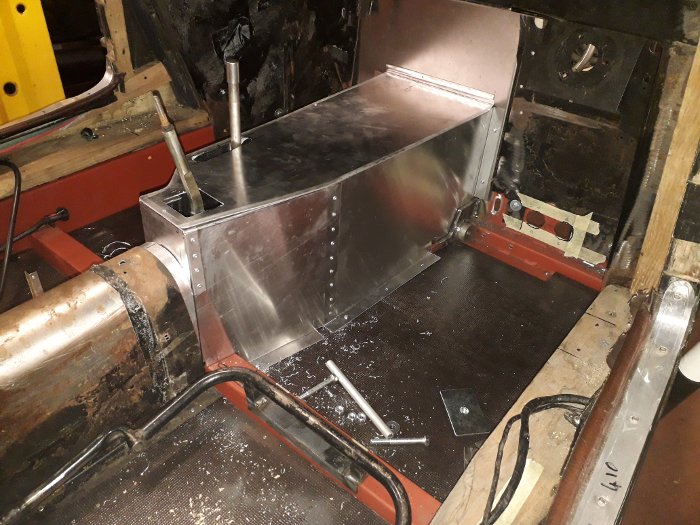

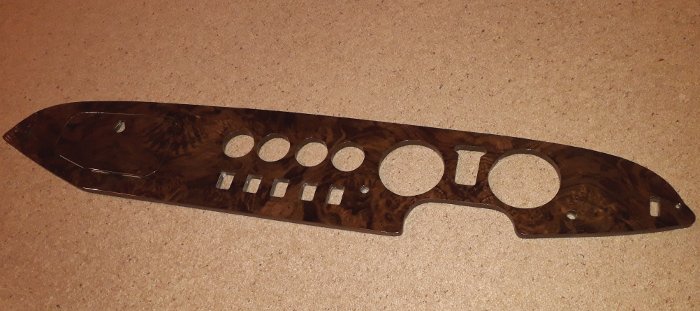

The walnut dashboard is back from being re-veneered and floorboards are cut to size and fitted.	A new, aluminium gearbox cover is fabricated.

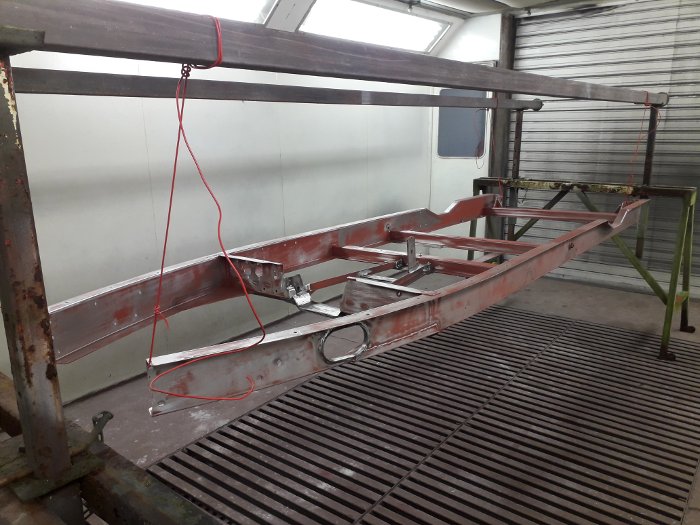

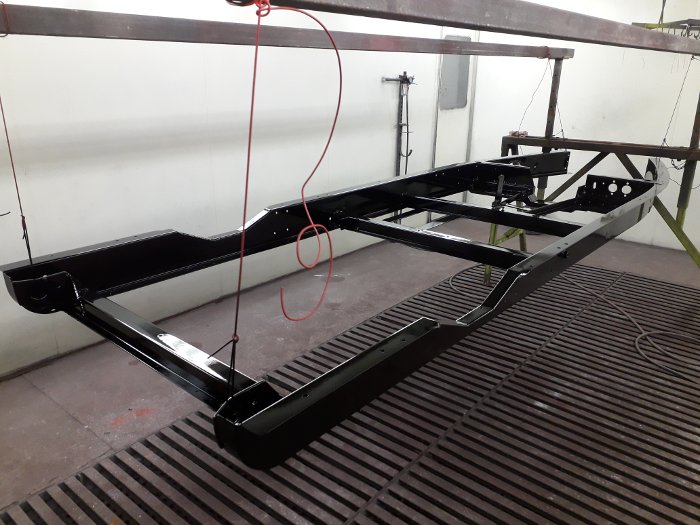

Then everything is taken off again and the chassis prepaired for paint.	Looking smart in a new coat of black.
