Fitting an Oil Cooler to a 4/4 Zetec

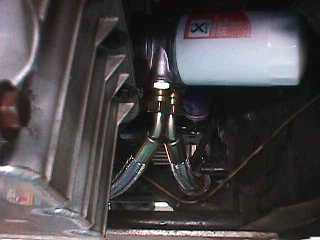

Right The fitted sandwich plate and hose connections between engine and oil filter. On this vehicle, the brake line was moved to give the additional clearance needed for the filter, with the plate in place.

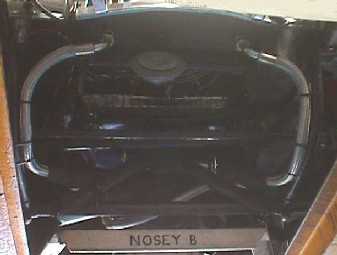

Below left The routing of the hoses, with stainless steel overbraid, shown as viewed from below the vehicle.

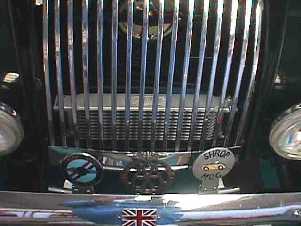

Below right The cooler is mounted on the cowl box, with the hoses connected from below. The standard Mocal cooler is the perfect width.
